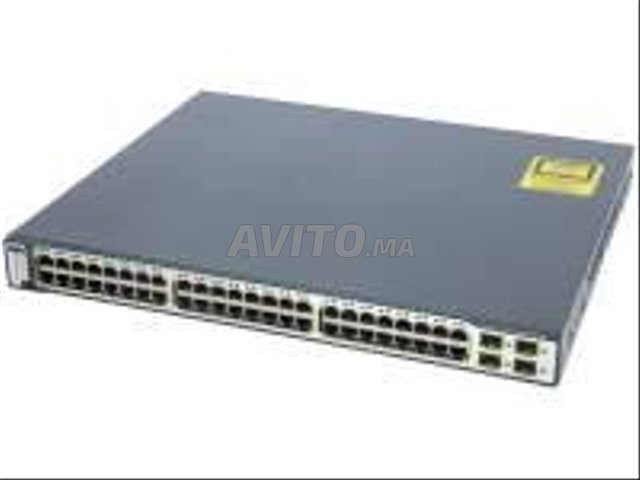

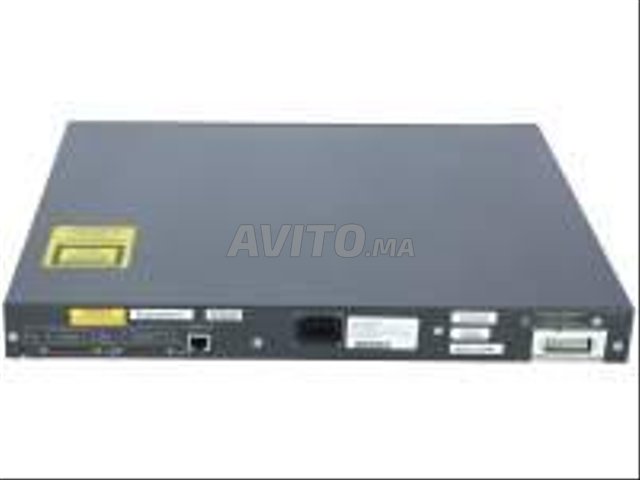

Cisco - WS-C3750-48PS-S - Catalyst 3750 48 10/100 PoE + 4 SFP Standard Image
Cisco Catalyst WS-C3750-48PS-S. Type de commutateur: GÃ©rÃ©. QuantitÃ© de ports Ethernet RJ-45 de commutation de base: 52. Full duplex. RÃ©pertoire MAC: 12000 entrÃ©es, CapacitÃ© de commutation: 32 Gbit/s. Standards rÃ©seau: IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3x
Informations sur le produit
Dimensions & Weight
Depth:	37.8 cm
Height:	4.4 cm
Weight:	6 kg
Width:	44.5 cm
Environmental Parameters
Humidity Range Operating:	10 - 85%
Max Operating Temperature:	45 °C
Min Operating Temperature:	0 °C
Expansion / Connectivity
Interfaces:	48 x 10Base-T/100Base-TX - RJ-45 PoE ¦ 2 x network stack device ¦ 1 x console - RJ-45 management ¦ 4 x SFP (mini-GBIC)
General
Authentication Method:	Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Compliant Standards:	IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Device Type:	Switch - 48 ports - L3 - Managed - stackable
Enclosure Type:	Rack-mountable 1U
Features:	Full duplex capability, Layer 3 switching, Layer 2 switching, auto-sensing per device, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, manageable, Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+)
Flash Memory:	16 MB Flash
MAC Address Table Size:	12K entries
Max Units In A Stack:	9
Ports:	48 x 10/100 (PoE) + 4 x SFP
Power Over Ethernet (PoE):	PoE
RAM:	128 MB
Remote Management Protocol:	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH
Routing Protocol:	RIP-1, RIP-2, EIGRP, HSRP, static IP routing, RIPng
Status Indicators:	Port transmission speed, port duplex mode, bandwidth utilization %, system, link/activity
Subtype:	Fast Ethernet
Miscellaneous
Compliant Standards:	TUV GS, BSMI CNS 13438 Class A, cUL, EN 60950, EN55022, NOM, VCCI Class A ITE, IEC 60950, EN55024, UL 60950 Third Edition, CB, AS/NZ 3548 Class A, MIC, CSA C22.2 No. 60950 Third Edition, FCC Part 15 A
Pricing Type:	Refurbished
Power
Features:	Redundant Power System (RPS) connector
Power Device:	Internal power supply
Voltage Required:	AC 120/230 V (50/60 Hz)
Software / System Requirements
Software Included:	Cisco IOS IP Base

Cisco Catalyst WS-C3750-48PS-S
